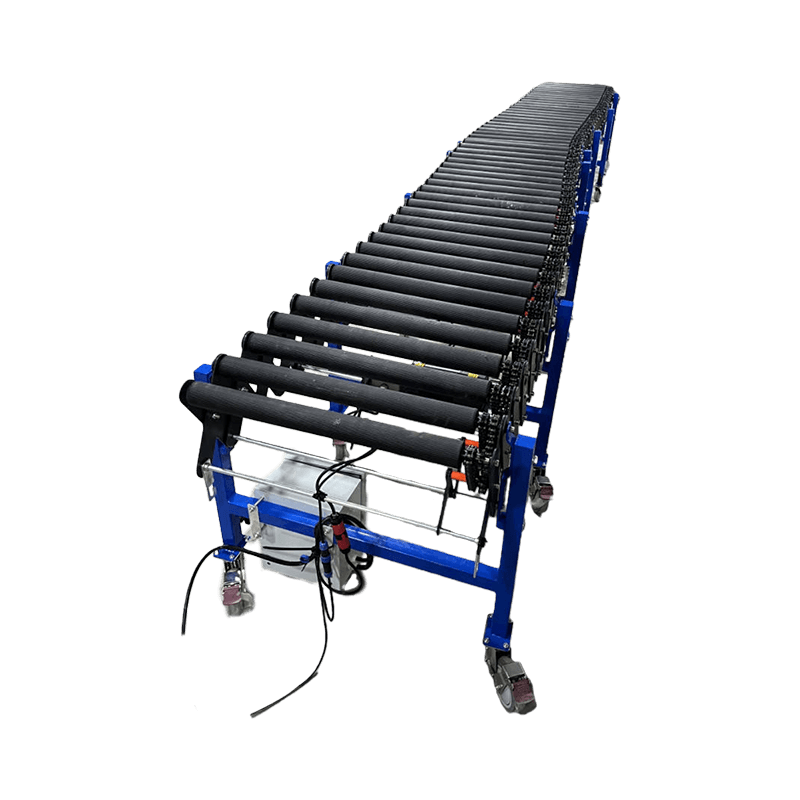

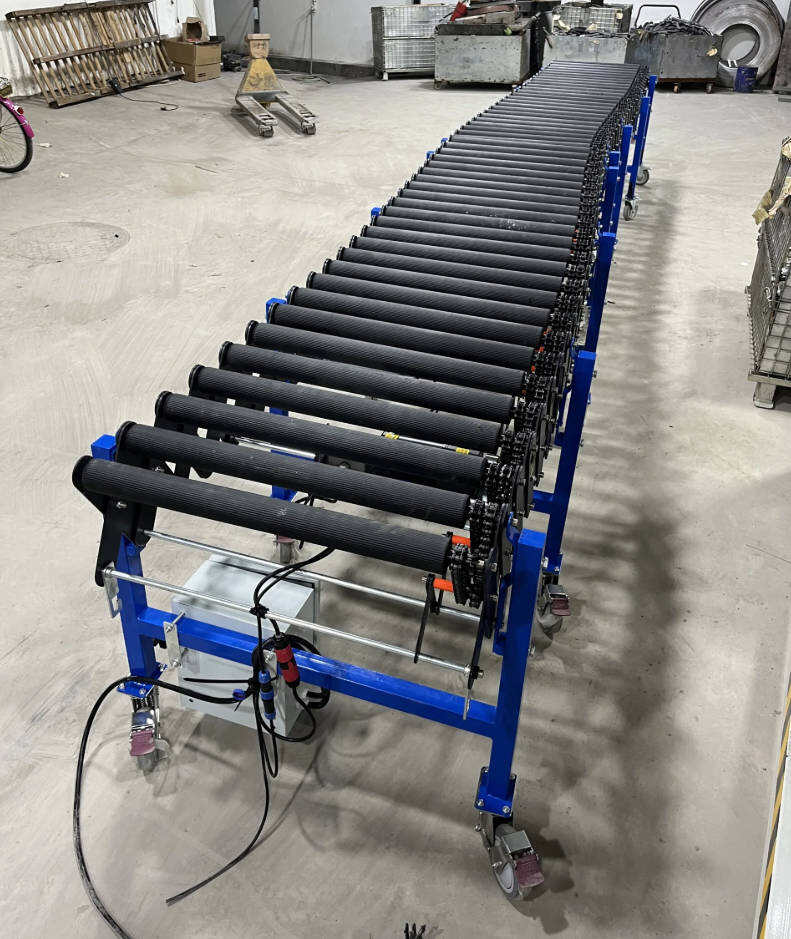

The chain Powered Rubber-Covered Roller Conveyor is mainly used for horizontal conveying and transfer of goods in warehouses, factories, and logistics sites. It is suitable for metal drums, plastic drums, rolls, cartons, and lightly weighted bagged goods. With chain drive and rubber-covered rollers, it is designed to transport heavier goods or goods with softer surfaces that require reduced contact impact through sorting, buffering, and loading/unloading transition sections in a stable manner. Before purchase, check four items first: whether the single-item weight and load per meter are within range, whether the bottom surface of the goods is suitable for roller conveying, the required retraction and extension lengths on site, and the height and width connection with the turning sections and the front and rear equipment. If there are clear requirements for insertion length, turning radius, or overall line layout on site, these parameters should be confirmed according to the final model or engineering requirements.

Applicable Sites and Cargo Limits

The known configuration of this model group is 1.5 m per section, making it suitable for conveying sections that need to be flexibly extended, retracted, and turned between fixed workstations. It is more commonly used as an in-warehouse transfer section, a buffering section in front of a loading/unloading opening, or a transition section between other conveying equipment.

Suitable cargo forms include:

• Metal drums, single item not exceeding 150 kg
• Plastic drums, single item not exceeding 150 kg
• Rolls, single item not exceeding 150 kg
• Cartons, single item not exceeding 150 kg
• Bagged goods, single item not exceeding 80 kg

When judging on site, in addition to weight, also consider the bottom surface and shape of the cargo:

• For drums and rolls, confirm stability after contact with the rollers to avoid deflection caused by point loading
• For cartons, confirm the flatness of the bottom surface to prevent sinking or jamming when crossing the rollers
• Although bagged goods have a lower single-item weight limit, also check whether the bags are prone to deformation and whether the bottom surface is likely to catch on the rollers
• When the surface is softer or the outer packaging needs reduced hard contact, rubber-covered rollers make it easier to control the contact condition than ordinary metal rollers

How to read the key parameters

When purchasing, first check the key parameters that affect layout and load capacity; there is no need to expand all dimensions at once. The key points clearly defined for the current model are as follows:

It is known that this model is equipped with one geared motor per 1.5 meters, featuring start/stop, forward/reverse, emergency stop, and stepless speed control from 0.3-40m/min. The leg height can be adjusted manually, and it comes with foot-operated locking swivel casters for easy on-site movement and positioning.

Extension, turning, and length layout

The practical value of this type of equipment lies not only in conveying, but also in its ability to be extended, retracted, and redirected according to on-site requirements. With a known single-unit base length of 680 mm, a fully extended length of 1500 mm, and an extension ratio of 1: 2.21, the key point when arranging it in passages, doorways, temporary loading and unloading areas, and between column grids is to verify both the operating state and the retracted state at the same time.

It is recommended to judge the layout in the following order:

1. First confirm the actual length that needs to be covered after extension.
2. Then confirm whether the retracted state will occupy a fire passage, forklift passage, or pedestrian passage.
3. At turning positions, confirm the inner and outer side clearances to avoid the equipment hitting columns, guardrails, shelf corners, or door frames after turning.
4. If multiple units need to be connected in series, the total extended length and total retracted length should be calculated according to the quantity before confirmation.

If the site requires the equipment to enter a fixed workstation, be arranged close to the edge, or bypass obstacles before connecting to the downstream line, the actual footprint after turning, turning angle, and multi-unit arrangement method should all be confirmed according to the final model or engineering requirements.

Same series as Powered Rubber-Covered Roller Conveyor if the site is more focused on conveying and transferring heavier goods under chain drive, this model can be used; if the site is more focused on another drive structure, a comparison can be made at the same time Multi-V-belt Powered Rubber-Covered Roller Conveyor; the key items to verify are still the goods weight, bottom-surface condition, line length, and on-site turning layout, and the drive name should also be checked at the same time.

How the front and rear sections are connected

Chain Powered Rubber-Covered Roller Conveyor is usually not used in isolation; in many sites it is placed between the incoming goods area, packing area, buffer area, and loading/unloading area as a transition. When connecting, focus on confirming the following items:

• Upstream incoming method: manual loading, non-powered roller push-in, or delivery by another powered conveyor
• Downstream receiving method: manual pick-up, buffer storage, or integration into another roller line
• Height connection: the leg height can be adjusted manually, but the height difference between the upstream and downstream roller surfaces still needs to be confirmed on site
• Width alignment: the effective width should match the upstream and downstream conveyor widths, or leave allowance for feeding in
• Cycle alignment: if the upstream side delivers goods in batches and the downstream side sorts manually, the speed adjustment range should be included in the layout
• Safety alignment: operating space should be reserved for personnel crossing the line, standing at the side, and picking up items at the curved section

If the site is a loading/unloading position with a height difference between the truck opening and the warehouse floor line, this type of roller conveyor is usually used as a horizontal transfer section; when climbing or descending is involved, first confirm whether it needs to be matched with Micro Hydraulic Conveyor or Large Hydraulic Conveyor coordinated, and then recheck the height at both ends, the connection length, and personnel positioning.

On-site layout and maintenance

When used on site, in addition to conveyor parameters, you should also pay attention to mobility, locking, and maintenance convenience.

Common points to watch for during layout and use:

• After the equipment is moved into position, the casters must be locked to prevent shifting during loading, unloading, or turning
• After adjusting the leg height, recheck the level of the entire roller surface to reduce cargo deviation
• The reverse function is suitable for short-distance backing up, position correction, or clearing the line, but the reverse direction should avoid areas where personnel stay
• The emergency stop button should be positioned so operators can reach it quickly
• If there is a lot of dust or packaging debris on site, the chain and roller contact areas should be cleaned regularly
• If transporting easily rolling goods such as drums or rolls, confirm the limiting method or receiving method at curved sections and at the end

During maintenance communication, the buyer usually needs to explain: approximate daily working hours, whether the type of goods is fixed, whether the equipment needs to be moved frequently, and whether the layout direction changes often. This makes it easier to confirm the number of motor configurations, the operating speed range, and the frequency of daily inspections.

FAQ

1. Is it suitable for transporting bagged goods?
It is suitable for bagged goods with a single piece not exceeding 80 kg, but you also need to confirm whether the bag body is likely to sag, rub, or catch on the rollers. When the shape of bagged goods varies greatly, the bottom bearing condition should be checked first.

2. Can it be used for drums and rolls?
It can be used for metal drums, plastic drums, and rolls, with a single piece not exceeding 150 kg. Before purchase, confirm the bottom contact surface, center of gravity position, and stability when passing through curved sections.

3. How should the speed be selected?
The known speed range is 0.3-40 m/min. For stations such as manual loading and unloading, scanning, and sorting, the speed usually needs to be kept within a more manageable range. The specific operating speed should be confirmed according to the on-site cycle.

4. Which length parameters need to be confirmed?
At minimum, confirm the base length per section of 680 mm, the fully extended length of 1500 mm, and the total length of the entire equipment when retracted and extended. For multi-section combinations, the total extended length and total retracted length need to be calculated based on the number of sections before confirmation.

Confirmation before purchase

When submitting an inquiry or layout request, it is recommended to explain the following information at once so it is easier to quickly determine whether this model is suitable for the site:

If the site has strict requirements for turning angles, combined length of multiple sections, the overall footprint of the machine, or height matching with other equipment, these dimensions must be confirmed according to the final model or by engineering.
