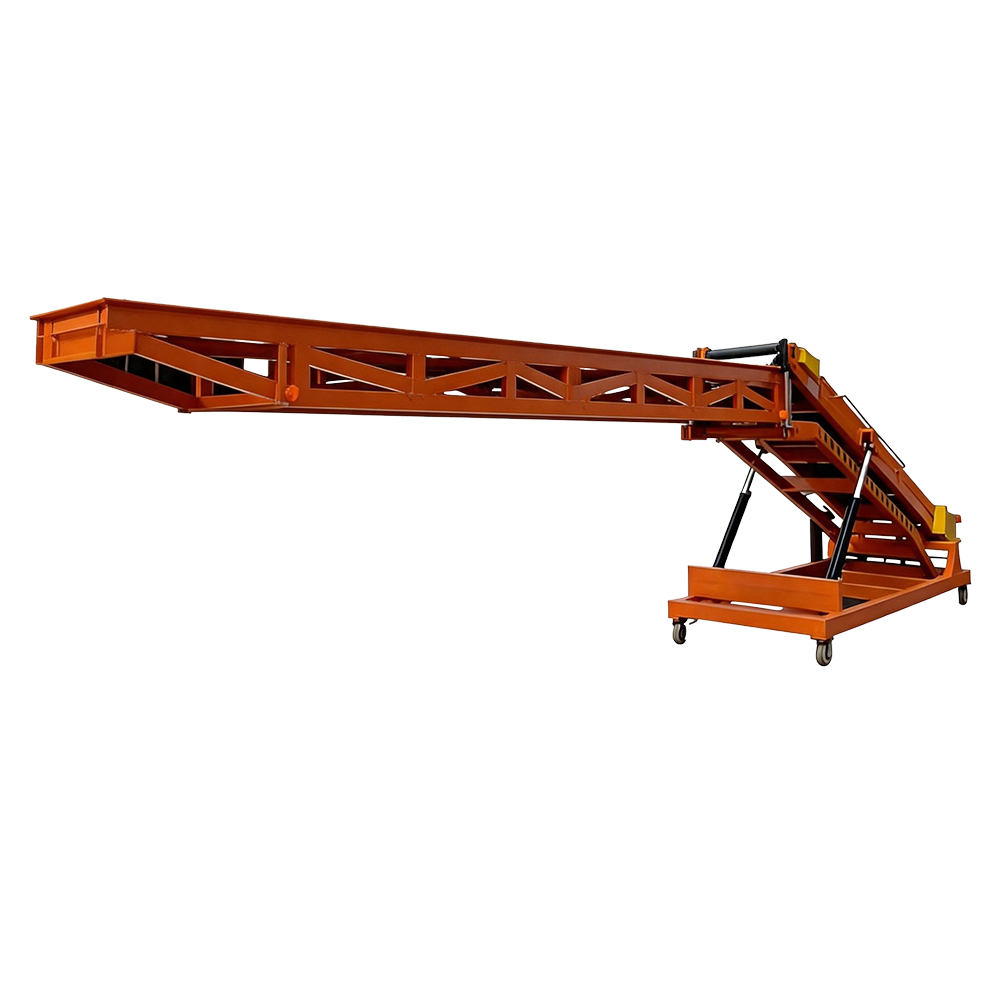

The heavy-duty Incline Conveyor mainly solves the problem of transferring cargo from a ground-level conveyor line into a truck body, or from the truck body back to a ground-level conveyor line, in sites without loading and unloading platforms. It is suitable for trucks under 17.5 meters and is commonly used in warehouses, factories, and logistics sites for cargo such as cartons, bagged goods, rolled goods, and tote boxes that can move steadily on a roller surface. Before purchasing, first confirm the truck type and cargo box height range, the length of the roller line that needs to extend into the truck body, the unit weight and bottom condition of the cargo, whether there is enough space for deployment and turning on site, and how personnel will coordinate inside and outside the truck body.

Applicable sites and cargo boundaries

The heavy-duty Incline Conveyor is used at loading and unloading sites without fixed platforms, with inconsistent platform heights, or where truck parking positions need temporary adjustment. The equipment adjusts the upper-end height through hydraulic lifting so the incline section can connect with different cargo box heights; the upper end can be paired with a roller conveyor extending into the truck body to reduce repeated handling at the cargo opening and secondary transfer.

Applicable cargo should meet the following conditions:

• The bottom surface of the cargo should be able to move smoothly on rollers or a conveying surface, such as cartons, tote boxes, bagged goods with relatively flat bottoms, and rolled goods.
• The size of a single item should not be smaller than the support conditions required by the roller spacing, to avoid getting caught in the gaps between rollers or tilting during operation.
• The cargo shape should not be severely deformed, leaking, or have an excessively shifted center of gravity; for such cargo, auxiliary pallets or side guards should be confirmed first, or another conveying method should be used.
• When loading or unloading, personnel are still required inside the truck body to stack, straighten, position, or transfer goods at the end, so it cannot be treated as unattended equipment.

If the cargo on site includes metal drums, plastic drums, irregular-shaped items, loose bagged goods, or easily rolling materials, first confirm the bottom contact method, center-of-gravity height, roller spacing, guardrails, and limiting method; do not determine the equipment based only on vehicle length.

How to Read the Key Parameters

When selecting a heavy-duty Incline Conveyor, first verify the parameters that affect on-site layout and loading/unloading safety. The table below can be used as the main checklist during procurement discussions:

These parameters should not be judged separately. If the truck body height is suitable but the floor space is insufficient, the equipment may not be able to align with the truck. If the roller line length is sufficient but the cargo bottom is unstable, the conveying state after entering the truck body will also be affected.

How to Arrange the Inside and Outside of the Truck Body

A heavy-duty Incline Conveyor is usually arranged at the truck tail or the truck door opening to connect the floor roller conveyor with the roller line inside the truck body. During on-site layout, focus on confirming the following positional relationships:

1. Floor End: Confirm the height difference, width difference, and centerline position between the upstream conveying line or the manual loading point and the entrance of the Incline Conveyor. If cargo at the floor end needs to turn before entering the incline section, reserve turning radius and a manual straightening position.
2. Incline Section: The slope affects cargo running stability. Cartons, bagged goods, rolled goods, and similar items behave differently on an inclined surface, so confirmation must be made based on weight, bottom friction, and conveying speed.
3. Truck Opening: The upper end should transition smoothly with the truck floor or the roller line inside the truck body to avoid cargo being blocked, bouncing, or sliding at the threshold.
4. Inside the Truck Body: A roller conveyor up to 16 m long can be used to deliver cargo into the truck body, but the actual insertion depth should be confirmed according to the truck structure, personnel stacking method, and cargo stacking method.
5. Personnel Passage: Space for standing, turning, avoiding, and emergency passage must be reserved inside and outside the truck body. Especially when loading long vehicles, the roller line should not be arranged in a position that affects personnel evacuation.

If multiple vehicles are being loaded and unloaded in rotation on site, confirm the repeat positioning accuracy of the vehicles. When the tail position deviation is large, an adjustment allowance must be left between the Incline Conveyor, the roller line, and the truck opening.

Hydraulic Lifting and Operation Confirmation

This machine has a built-in hydraulic lifting system for adjusting the height of the upper end of the Incline Conveyor. During procurement and acceptance, it is recommended to focus on the lifting method, stability during lifting, and the locking and support conditions at different truck bed heights.

On-site operation usually requires attention to the following:

• Before lifting, make sure no one’s feet, pallets, tools, or scattered goods have entered the moving area around the equipment.
• When raising or lowering, first ensure a proper transition between the upper end and the truck bed floor, then perform a cargo conveying test.
• There should be no obvious misalignment between the equipment and the truck; truck-bed movement, vehicle braking, or ground slope will all affect the docking condition.
• Before goods pass through the incline section, use representative cargo for a trial run first to observe whether they skew, slip, tip over, or get stuck at the transition point.
• Before daily use, inspect the hydraulic components, roller rotation, fasteners, support legs, and electrical controls. If abnormal noise, oil leakage, or looseness is found, stop the machine and handle it.

The reinforced Incline Conveyor is not a device that can complete all loading and unloading operations simply by placing it at the rear of the truck. It is better suited as a linkage device between the truck bed and the outside environment, to be used together with the ground roller line, the roller line inside the truck bed, and on-site manual operation.

Situations Where Direct Use Is Not Recommended

In the following situations, it is not recommended to place an order directly with the standard configuration. Engineering confirmation or adjustment of the conveying method should be performed first:

For sites handling mixed cargo types, verify against the maximum weight, maximum size, least stable bottom surface, and highest truck-bed height, and avoid judging the equipment configuration only by the conditions of common cargo.

Frequently Asked Questions

Is the reinforced Incline Conveyor suitable for warehouses without a loading dock?
It is suitable for warehouses, factories, and logistics sites without fixed loading and unloading platforms, but the truck parking position, truck-bed height, ground flatness, and equipment deployment space must be confirmed.

Can the cargo be sent directly to the deep part of the truck bed?
The upper bracket can be matched with a roller conveyor up to 16 m long. The actual delivery position depends on the truck-bed length, internal passage, personnel position, and cargo stacking method. This parameter should be confirmed according to the final model or by engineering review.

Is it suitable for bagged or rolled cargo?
For bagged or rolled cargo, check the bottom surface stability, degree of deformation, and center-of-gravity position. If the cargo is likely to roll, collapse, or skew, confirm the roller type, guardrails, stops, and manual straightening method.

What on-site information should be provided before purchasing?
It is recommended to provide the truck length and cargo bay height, cargo dimensions and weight, loading or unloading direction, on-site floor plan dimensions, floor conveyor line height, and the conveying length you want to cover inside the cargo bay.

Pre-purchase confirmation

Before placing an order, it is recommended to organize the following information for the equipment engineering or procurement contact person so they can confirm whether the heavy-duty Incline Conveyor is suitable for the site:

• Common truck types and lengths, and whether the trucks are under 17.5 meters long.
• Cargo bay floor height above ground, preferably including the height range for empty, half-loaded, full-loaded, or different vehicle types.
• Cargo packaging form, maximum dimensions, maximum weight, and base material, and whether it is easy to slip, roll, or deform.
• Whether the plan is for loading or unloading, which end the cargo enters from, and how deep it needs to be conveyed inside the cargo bay.
• Whether the top roller conveyor needs to reach a length close to 16 meters, and whether there is enough operating space inside the cargo bay.
• Whether there is already a roller conveyor on the ground side, and the width, height, conveying direction, and docking position need to be confirmed.
• On-site door openings, passages, vehicle parking areas, turning areas, floor slope, and ground load-bearing conditions.
• Requirements for lifting operations, equipment movement, securing method, and daily maintenance staffing.

If the site has extra-long vehicles, overweight cargo, a large cargo bay height span, or limited ground space, dimensions and operating conditions should be confirmed first before determining the equipment configuration.
